Manufacturer DiscontinuedLimited Stock
Siemens

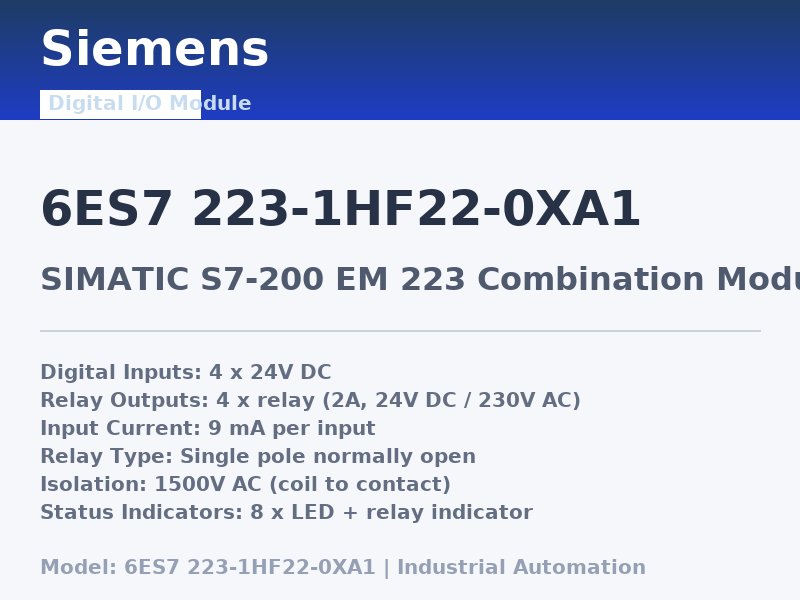

Siemens 6ES7 223-1HF22-0XA1 SIMATIC S7-200 EM 223 Combination Module 4DI/4DO Relay
MPN: 6ES7 223-1HF22-0XA1
$220-400
Limited StockThe Siemens SIMATIC S7-200 EM 223 Combination Module is a digital I/O expansion module that offers both inputs and outputs to enhance the functionality of S7-200 PLC systems. This model is designed for applications that need a moderate mix of discrete I/O, providing flexibility i
| Digital Inputs | 4 x 24V DC |
|---|---|
| Relay Outputs | 4 x relay (2A, 24V DC / 230V AC) |
| Input Current | 9 mA per input |
| Relay Type | Single pole normally open |
| Isolation | 1500V AC (coil to contact) |
| Status Indicators | 8 x LED + relay indicator |
| Power Consumption | 3 W |
| Connector | 2 x 4-pin screw terminals |
| Dimensions | 71 x 80 x 60 mm |
CEULRoHS
- Contact us for detailed product features
- Industrial automation systems
