Mitsubishi

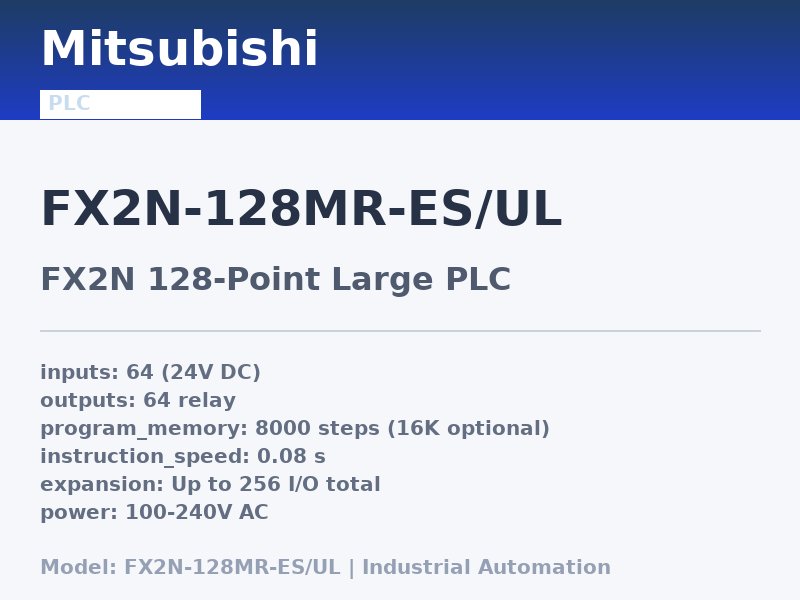

Mitsubishi FX2N-128MR-ES/UL FX2N 128-Point Large PLC
MPN: FX2N-128MR-ES/UL
$800-1400
Contact for AvailabilityMitsubishi FX2N-128MR-ES/UL is the largest base unit in the FX2N family with 64 inputs and 64 relay outputs. High-density I/O for mid-to-large scale machine control. Expands to maximum 256 I/O with additional modules. AC powered with 0.08μs processing speed. The go-to choice for
| Inputs | 64 (24V DC) |
|---|---|
| Outputs | 64 relay |
| Program Memory | 8000 steps (16K optional) |
| Instruction Speed | 0.08 μs |
| Expansion | Up to 256 I/O total |
| Power | 100-240V AC |
| Communication | RS-422/RS-485 |
| Dimensions | 490 x 90 x 87 mm |
CEULRoHS
Available Option Codes / Variants
- fx2n-128mr-esul — MELSEC FX PLC
The codes above are the same base model in different configurations. Tell us the exact code you need and we will confirm availability.
- 128 I/O density
- 0.08μs high speed
- 64 relay outputs
- UL certified
- Widest FX2N configuration
- Production line control
- Complex machine automation
- Process skids
- Injection molding
- Printing machinery
